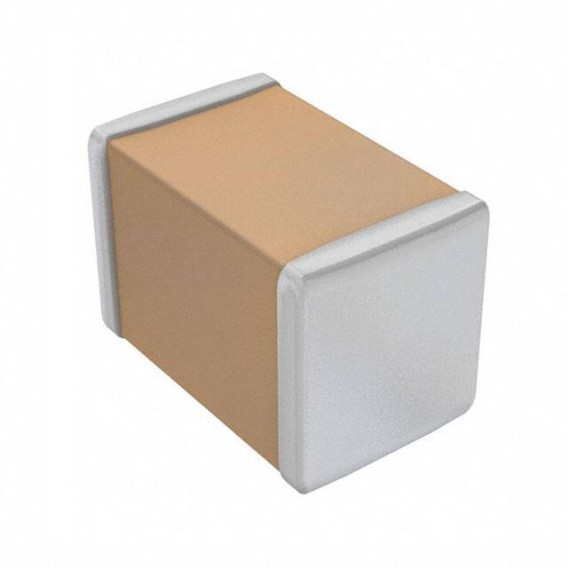

CL21A226MQQNNNE
CL21A226MQQNNNE
technical specifications, attributes, parameters and parts with similar specifications to CL21A226MQQNNNE.
| Type | Parameter |
| Contact Plating | Tin |
| Mount | Surface Mount |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0805 (2012 Metric) |
| Operating Temperature | -55°C~85°C |
| Packaging | Tape & Reel (TR) |
| Published | 1997 |
| Series | CL |
| Size / Dimension | 0.079Lx0.049W 2.00mmx1.25mm |
| Tolerance | ±20% |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Temperature Coefficient | X5R |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Applications | General Purpose |
| Voltage - Rated | 6.3V |
| Capacitance | 22μF |
| Voltage - Rated DC | 6.3V |
| Depth | 1.25mm |
| Case Code (Metric) | 2012 |
| Case Code (Imperial) | 0805 |
| Dielectric | X5R |
| Height | 1.25mm |
| Length | 2mm |
| Width | 1.2446mm |
| Thickness (Max) | 0.055 1.40mm |
| Thickness | 1.397mm |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
CL21A226MQQNNNE Overview
In the case of this device, the size/dimension of the program is 0.079Lx0.049W 2.00mmx1.25mm.An operating temperature greater than -55°C is necessary for stable operation.In general, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance per degree of temperature change.The voltage - Rated DC of 6.3V allows it to function.
CL21A226MQQNNNE Features
a size/dimension of 0.079Lx0.049W 2.00mmx1.25mm
with X5R being the highest temperature coefficient
with the voltage - Rated DC of 6.3V
CL21A226MQQNNNE Applications
There are a lot of Samsung Electro-Mechanics CL21A226MQQNNNE applications of ceramic capacitors.
Power supply circuit
Servers, PCs, tablets
Mobile devices
General electronic equipment
