Diodes Incorporated MMDT2227-7-F
Specifications
Diodes Incorporated MMDT2227-7-F technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated MMDT2227-7-F.
| Contact Plating | Tin |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |

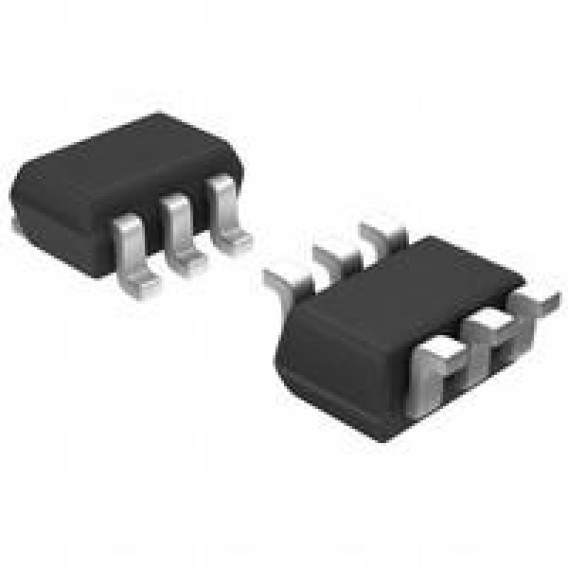

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Number of Pins | 6 |
| Weight | 6.010099mg |
| Operating Temperature | 55°C~150°C TJ |
| Packaging | Tape & Reel (TR) |
| Published | 2007 |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 6 |
| Termination | SMD/SMT |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Voltage - Rated DC | 40V |
| Max Power Dissipation | 200mW |
| Current Rating | 600mA |
| Frequency | 300MHz |
| Base Part Number | MMDT2227 |
| Number of Elements | 2 |
| Polarity | NPN, PNP |
| Element Configuration | Dual |
| Power Dissipation | 200mW |
| Turn On Delay Time | 35 ns |
| Power - Max | 200mW |
| Gain Bandwidth Product | 300MHz |
| Transistor Type | NPN, PNP |
| Turn-Off Delay Time | 285 ns |
| Collector Emitter Voltage (VCEO) | 1V |
| Max Collector Current | 600mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA 10V |
| Current - Collector Cutoff (Max) | 10nA ICBO |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA / 1.6V @ 50mA, 500mA |
| Collector Emitter Breakdown Voltage | 60V |
| Voltage - Collector Emitter Breakdown (Max) | 40V 60V |
| Current - Collector (Ic) (Max) | 600mA |
| Max Frequency | 300MHz |
| Collector Emitter Saturation Voltage | 1V |
| Max Breakdown Voltage | 60V |
| Frequency - Transition | 300MHz 200MHz |
| Collector Base Voltage (VCBO) | 75V |
| Emitter Base Voltage (VEBO) | 6V |
| hFE Min | 100 |
| Continuous Collector Current | 600mA |
| Height | 1mm |
| Length | 2.2mm |
| Width | 1.35mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
