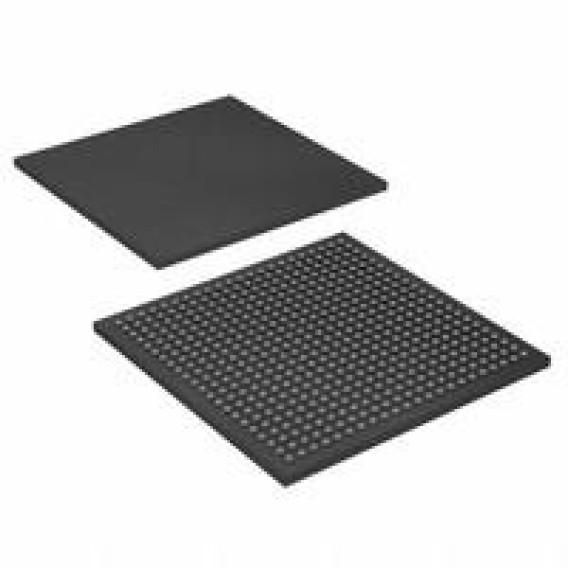

Xilinx Inc. XC6SLX75-2CSG484I
Specifications
Xilinx Inc. XC6SLX75-2CSG484I technical specifications, attributes, parameters and parts with similar specifications to Xilinx Inc. XC6SLX75-2CSG484I.
| Type | Parameter |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | 484-FBGA, CSPBGA |
| Number of Pins | 484 |
| Operating Temperature | -40°C~100°C TJ |
| Packaging | Tray |
| Published | 2008 |
| Series | Spartan®-6 LX |
| JESD-609 Code | e1 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Number of Terminations | 484 |
| ECCN Code | 3A991.D |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) |
| Subcategory | Field Programmable Gate Arrays |
| Technology | CMOS |
| Voltage - Supply | 1.14V~1.26V |
| Terminal Position | BOTTOM |
| Terminal Form | BALL |
| Peak Reflow Temperature (Cel) | 260 |
| Supply Voltage | 1.2V |
| Terminal Pitch | 0.8mm |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Base Part Number | XC6SLX75 |
| Pin Count | 484 |
| Number of Outputs | 310 |
| Qualification Status | Not Qualified |
| Operating Supply Voltage | 1.2V |
| Number of I/O | 328 |
| RAM Size | 387kB |
| Clock Frequency | 667MHz |
| Programmable Logic Type | FIELD PROGRAMMABLE GATE ARRAY |
| Number of Logic Elements/Cells | 74637 |
| Total RAM Bits | 3170304 |
| Number of LABs/CLBs | 5831 |
| Speed Grade | 2 |
| Number of Registers | 93296 |
| Height Seated (Max) | 1.8mm |
| Length | 19mm |
| Width | 19mm |
| RoHS Status | ROHS3 Compliant |
XC6SLX75-2CSG484I Overview
A 484-FBGA, CSPBGA package is provided with this component. An FPGA of this type is made up of FIELD PROGRAMMABLE GATE ARRAY gates. This device features 328 I/Os in order to transfer data in a more efficient manner. A fundamental building block consists of 74637 logic elements/cells. In order to operate fpga chips, a voltage supply of 1.2V volts is required. The Field Programmable Gate Arrays family of FPGAs includes this part. An attachment Surface Mount allows the FPGA module to be attached to the development board. Fpga chips operates at a voltage of 1.14V~1.26V and uses a battery to supply power. This is a type of FPGA that is part of the Spartan?-6 LX series of FPGAs. Operating temperatures should be maintained within the -40°C~100°C TJ range at all times when the unit is in use. A total of 310 outputs are incorporated into this device. There is an FPGA model contained in Tray in order to conserve space. Fpga chips is designed wFpga chipsh 484 terminations. Having a RAM bit size of 3170304 means that this device will offer you a lot of memory. Related parts can be found by using its base part number XC6SLX75. There is a maximum RAM si387kBe of 387kB on this FPGA module, which is necessary to ensure the normal operation of the program. In this case, 484 pins are used in the design. An array of 5831 LABs/CLBs is built into the FPGA. Having stated that, if this FPGA is mounted in Surface Mount, then it may be able to perform fantastically according to its specifications. In operation with 1.2V, designers can take advantage of its flexibility to the fullest extent. Fpga semiconductor is equipped wfpga semiconductorh 484 pin count. Usually, fpga semiconductor uses a 667MHz crystal. The data is stored and transferred using 93296 registers that are used for this purpose.
XC6SLX75-2CSG484I Features
328 I/Os
Up to 3170304 RAM bits
484 LABs/CLBs
93296 registers
XC6SLX75-2CSG484I Applications
There are a lot of Xilinx Inc. XC6SLX75-2CSG484I FPGAs applications.
Distributed Monetary Systems
Military Temperature
Integrating multiple SPLDs
Audio
Computer hardware emulation
Cryptography
Bioinformatics
Medical imaging
Wired Communications
Enterprise networking
